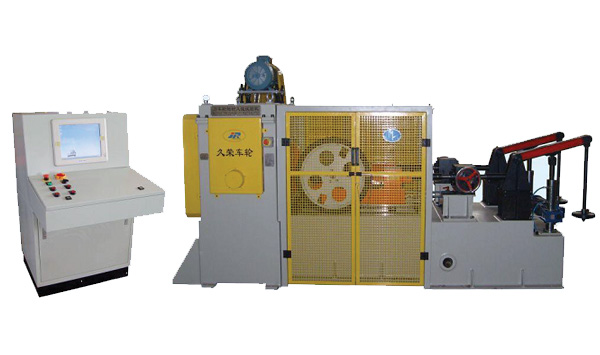

Machine Type: TJR-2-BC (J) Machine Application:Used for Bicycle Tire Endurance Test on Drum with cleat. Technical Parameters:
Machine Structure: Horizontal Machine Frame
Position Number: 2
Drum Diameter × Width: 2 - Φ 790 × 150 mm
Drum Cleat Width: 10 mm ± 0.1 mm
Drum Cleat Height: 5 mm ± 0.1 mm
|
Tire Diameter: Φ 250 ~ Φ 800
Tire Max. Section Width: < 150 mm
Test Speed: Max. 80 km/h, Accuracy: 0 ~ +2 km/h
Test Load: Max. 8 kN, Accuracy: ±2%P.S.
Loading Means: Mechnical Weight Loading
Motor Power: 5.5 kW AC
Machine Dimension: Approx. L3500 mm × W1200 mm × H1850 mm
Machine Total Weight: Approx. 3 t
|
