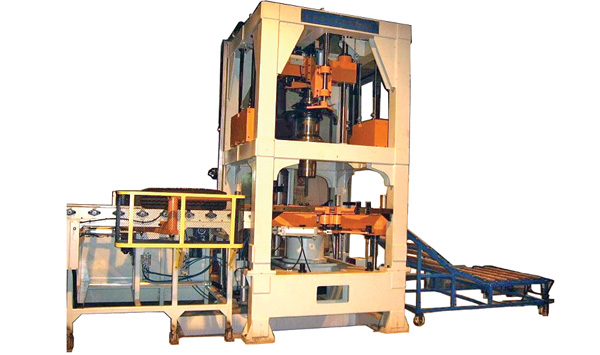

Tire Run-out Measuring Machine (Production-Line Type)

Machine Type: ROM-100
Machine Application:Used for measuring
TB tire radial run-out and lateral run-out.

Technical Parameters:
Machine Structure:Vertical Machine Frame (Tire laying horizontally)
Tire diameter: Φ 609 ~ Φ 1300
Tire Section Width: 170mm ~  480 mm
Rim nominal diameter: 16" ~ 24.5"
Rim nominal width: 4.5" ~ 14"


Tire surface linear velocity: 12 ~ 48 m/min
Repeatability of measuring system: ≤ 0.1 mm
Measuring Accuracy: Radial Measuring Accuracy: ≤ 0.20 mm
Lateral Measuring Accuracy: ≤ 0.20 mm
Tire Max.Volume: 0.39 m
Motor power: 2.2 kW AC
Machine dimension: Approx. L5400 mm × W4500 mm × H4850mm
Machine total weight: Approx. 10 t
