Tire testing machineYOUR CURRENT LOCATION：HOME > Tire testing machine
|

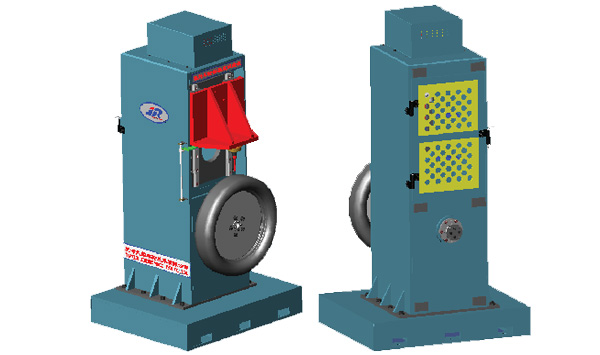

Machine Type: LQD-2 Machine Application:Used for performing the tire strength (stiffness) test and measuring the destructive performance. Technical Parameters:
Machine Structure: Vertical machine frame
Tire Diameter: Φ 350 ~ Φ 800
Tire Max. Section Width: < 250 mm
Rim Nominal Diameter: 8″ ~ 21″
Loading Means: Mechanical Loading
|
Test Load: Max. 20 kN
Loading Speed: 50 ± 2.5 mm/min
Plunger Return Speed: 50 ~ 500mm/min
Loading stroke: Max. 350 mm
Motor Power: 2.2 kW DC
Machine Dimension: Approx. L1200 mm ×W1000mm× H2300 mm
Machine Total Weight: Approx. 1.8 t
|
