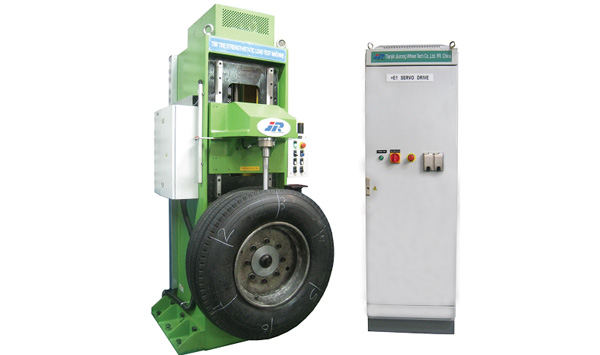

Machine Type: TBST-1 Machine Application:Used for TB Tire Static Load Test & Plunger Test Technical Parameters:
Machine Structure: Vertical Machine Frame
Tire Diameter: Φ 600 ~ Φ 1400
Tire Section Width: 170 ~ 480 mm
Rim nominal diameter: 15″ ~ 24.5″
|
Rim nominal width: 140 ~ 356 mm
Test Load: Max. 100 kN
Loading stroke: Max. 450 mm
Test speed: 50 ± 1.5 mm/min
Loading means: mechanical servo loading in
closed-loop control
Motor power: 8 kW AC
Machine dimension: Approx. L1500 mm × W2000 mm
× H3300 mm
Machine Total Weight: Approx. 6 t
|
