Tire testing machineYOUR CURRENT LOCATION：HOME > Tire testing machine
|

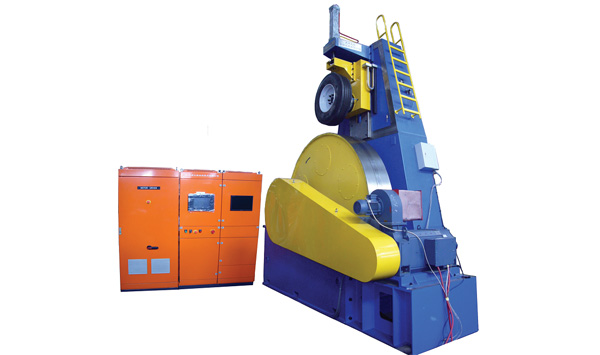

Machine Type: TJR-1-PCN(Y) Machine Application:Used for passenger car and light truck tire noise inspection Technical Parameters:
Structure: Horizontal machine frame
Test Position: 1
Drum Diameter × Width: Φ 3000 × 500 mm
Tire Diameter: Φ550mm ~ Φ1300mm
|
Rim Diameter: 12″ ~ 28″
Test Speed: 20~200km/h, accuracy: 0~+2km/h
Test Load: Max.70 kN, accuracy: ±1%P.S.
Loading Means: Hydraulic servo in closed-loop
Motor Power: 119 kW DC
Machine Dimension: Approx.
L4350mm×W2700mm×H6100mm
Total Weight: Approx. 30 t
|
