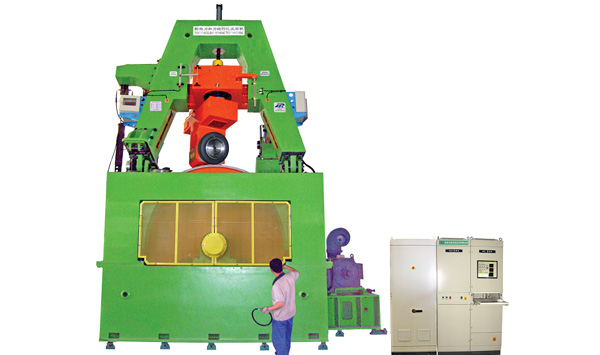

Machine Type: TJR-LFL-PC(Y) Machine Application:Used for measuring the five tire forces and moments in steady-state under free-rolling conditions as a function of slip angle and normal force. Technical Parameters:
Machine Structure: Vertical Machine Frame
Test Position:1
Drum diameter × width: Φ 3000 × 500 mm
Drum Surface Coating: 80grit (tungsten carbide)
Tire Diameter: Max. Φ 1000
Tire Unloaded Radius: Min. 250 mm
Tire Rim Diameter: 13″ ~ 28″
|
Test Vertical Load Fz: Max. 30 kN, Accuracy: ± 1%
Lateral Force Fy: -20 ~ +20 kN, Accuracy: ± 1%
Aligning Torque Mz: -1.3 ~ +1.3 kN.m, Accuracy: ± 1%
Test Speed: Max. 120 km/h, Accuracy: 0 ~ +1 km/h
Slip Angle Range: ± 25°, Accuracy: ± 0.05°
Camber Angle Range: ± 15°, Accuracy: ± 0.05°
Motor Power: 253 kW DC
Machine Dimension:
Approx.L5200 mm × W3100 mm × H6900 mm
Machine Total Weight: Approx. 45 t
|
