 Tire testerYOUR CURRENT LOCATION：HOME > Tire tester

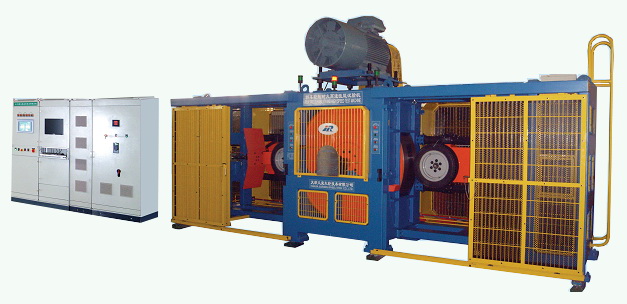

2-Position PC Tire Endurance/High Speed Test Machine

Type:  TJR-2-PC (J) or TJR-2-PC (Y)
application:  It is used for PC or LT tire
endurance or high speed test
Technical parameters:
Structure: vertical rack
Test Position: 2
Drum Diameter × Width: Φ1,707.6 × 450mm
Drum Radial Run-out: ≤ 0.15 mm
Drum Lateral Run-out: ≤ 0.15 mm
Residual imbalance: < 5g



Tire Diameter: Φ 480mm~ Φ 1000mm
Tire Max. Section Width: < 400mm
Test Speed: Max.320km/h, accuracy: 0~+2 km/h
Radial Load: Max.30 kN, accuracy: ±1%P.S.
Loading Means: mechanical or hydraulic servo in closed-loop
Motor Power: 110 kW AC variable frequency  (or DC)
Dimension: Approx. L6900mm × W1750mm × H3310mm
Total Weight: Approx. 12t
