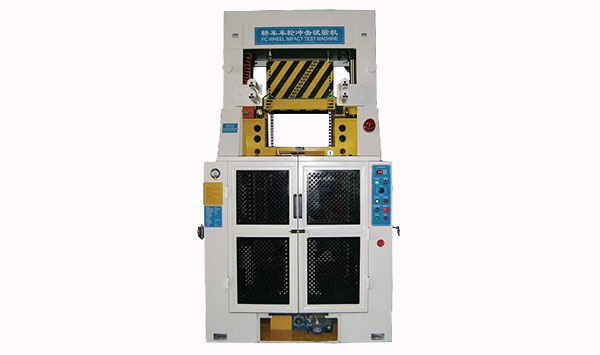

Machine Type: ITM-4
Machine application: For Passenger 13°/30°/90°Car
Wheel Lateral Impact Test Technical parameters:
Striker mass adjusting range: 350 kg ~1200 kg
Striker effective dropping adjustable range ≥ 300 mm
Striker face length ≥ 375 mm, with ≥ 125 mm
Rubber pad: 4 PCS (φ 51 × 27, hardness HS 50）
Machine structure: included angle between impact support base and plane is 30°
Machine structure: included angle between impact support
base and plane is 90° |
Striker mass: 910 kg ± 18 kg
Weight mass: 100 kg ± 4.5 kg
Striker effective dropping distance: Max. 500 mm
Spring quantity: 3 PCS
Resultant spring constant: 0.98 ~ 1.3 kN/mm
Striker impact face length: ≥ 380 mm,
width ≥ 152 mm
Motor Power: 1.5 kW AC
Machine dimension: About L1600 mm × W1500 mm × H3100 mm
Machine total weight: About 5 t
|
