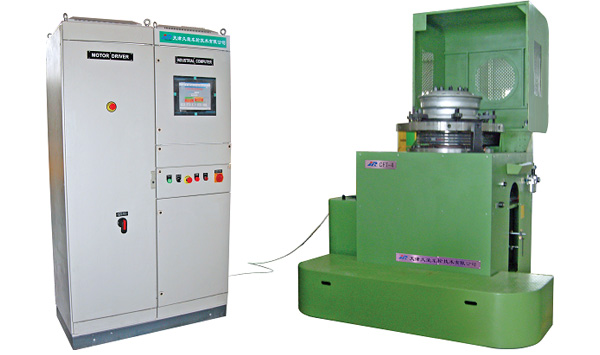

Machine Type: CFT-4
Machine application: For Truck and Bus Wheel
Dynamic Cornering Fatigue Test Technical parameters:
Structure: Wheel rotates, loading direction is invariable.
Wheel diameter: 16″~24.5″,
Wheel width: 5.5″~15″
Bending moment: Max. 50 kN.m, accuracy: ±2% P.S.
|
Rotation speed: Max.500 rpm
Speed regulation mode: stepping stepless drive
Load displacement range: 0~+30mm, accuracy: ±2% P.S
Loading means: Precise ball-screw
Automatic alarm protection device
Motor power: 22 kW DC
Dimensions: Approx.L2500mm×W2300mm×H3000mm
Total weight: Approx.5t
|
